Hardware
| Mainboard | Rockchip |
| RAM / Storage | 2 GB / 16 GB |
| Display | 8", 800×1280, high-strength tempered glass |
| RGB camera | 2 MP HD, wide dynamic range |
| IR camera | 2 MP |
| Audio | 3W stereo speaker; microphone supported |
| Housing | Aviation-grade aluminium |
Face Recognition - Attendance Recording

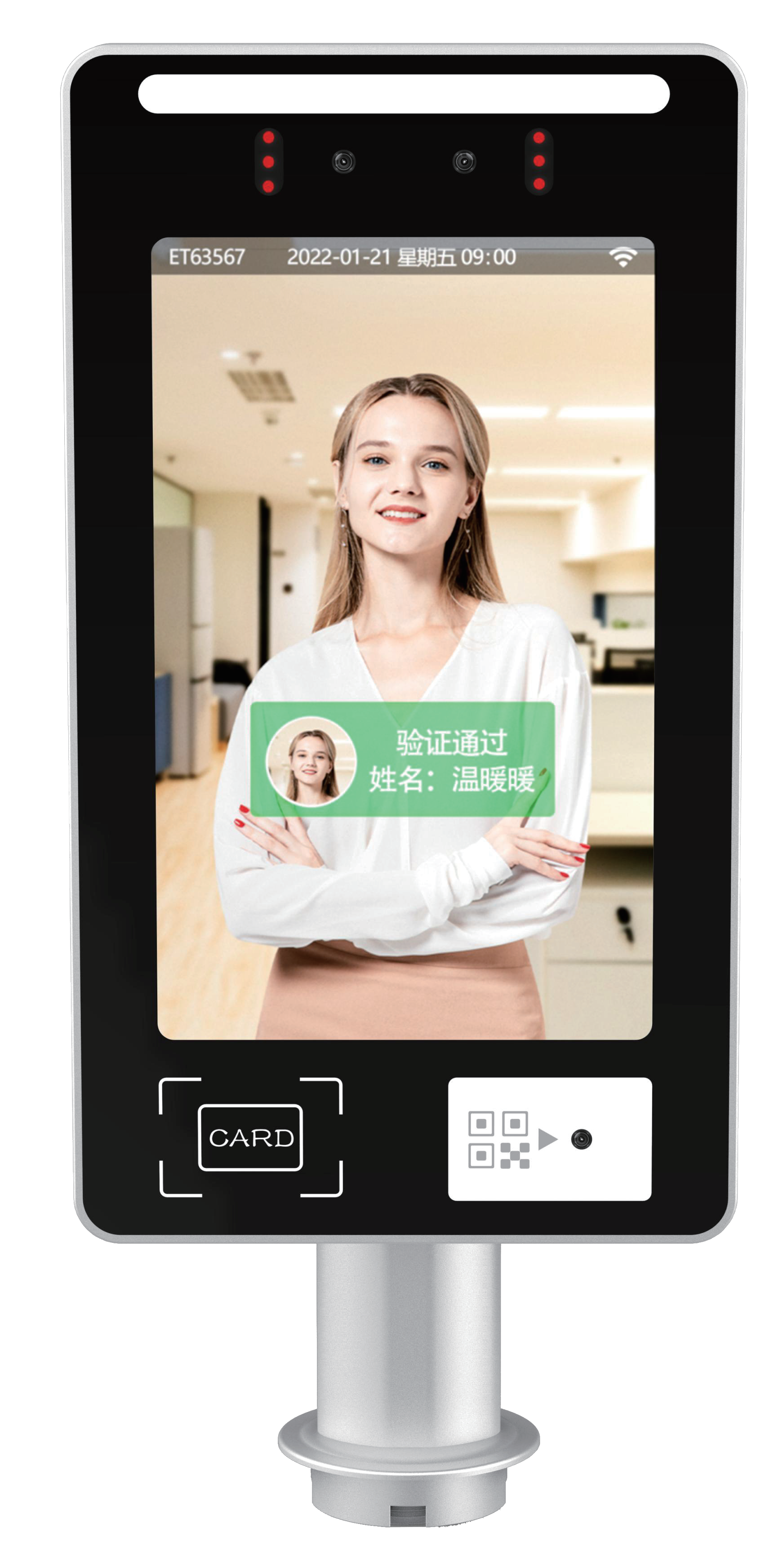

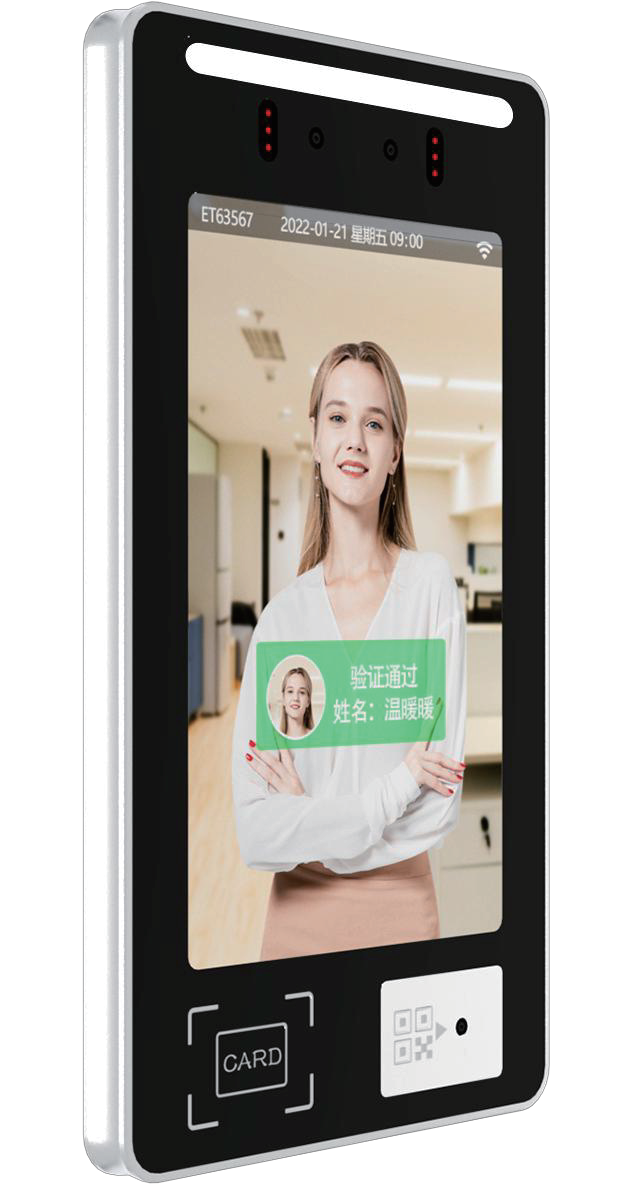

Industrial 8-inch access and attendance terminal with dual-camera face recognition, IC/ID card and QR code. Typical recognition is 0.2 seconds at 99.98% accuracy, with a 50,000-face local gallery and IP65 enclosure for indoor and outdoor site gates.
Product
Key Features
- Recognition in about 0.2 seconds (200–300 ms), accuracy 99.98%, range 0.5–3.0 m.
- Dual RGB + IR cameras with live tracking and auto exposure for glare, low light and backlight.
- Aviation-grade aluminium unibody, IP65, −25°C to +75°C for indoor and outdoor gates.
- 8-inch 800×1280 multi-touch display with voice prompts and custom greetings.
- Local gallery of 50,000 faces; face, QR, IC and ID used independently or combined.
- Wiegand 26/34 door control, Ethernet / 2.4G Wi-Fi / 4G, and API for third-party systems.
- Cloud operations for staff, visitors, attendance, reports and live dashboards.
- Optional remote video intercom and visitor QR workflow.
Application
| OS | Android |
| Recognition distance | 0.5–3 m |
| Recognition speed | 200–300 ms |
| Accuracy | 99.98% |
| Local face gallery | 50,000 faces |
Connectivity & I/O
| Ethernet | Supported (RJ45) |
| Wi-Fi | IEEE 802.11 b/g/n, 2.4 GHz |
| 4G | Supported |
| USB | USB 2.0 × 1 |
| Relay / Serial | Relay supported; RS-485 |
| Wiegand | 26 / 34 format |
| Power | DC 12V–3A (no PoE) |
Environment & install
| Use | Indoor and outdoor |
| Temperature | −25°C ~ +75°C |
| Humidity | 5%–93% RH, non-condensing |
| Protection | IP65 |
| Mounting | Wall, floor, turnstile, desktop |
Components
Included: Power adapter, standard DC 12V 3A (PoE not supported).
Optional: Under-screen IC/ID card reader, QR code recognition, 1.1 m column bracket (LEK8), 1.3 m wall bracket (QEK8).
Dimensions

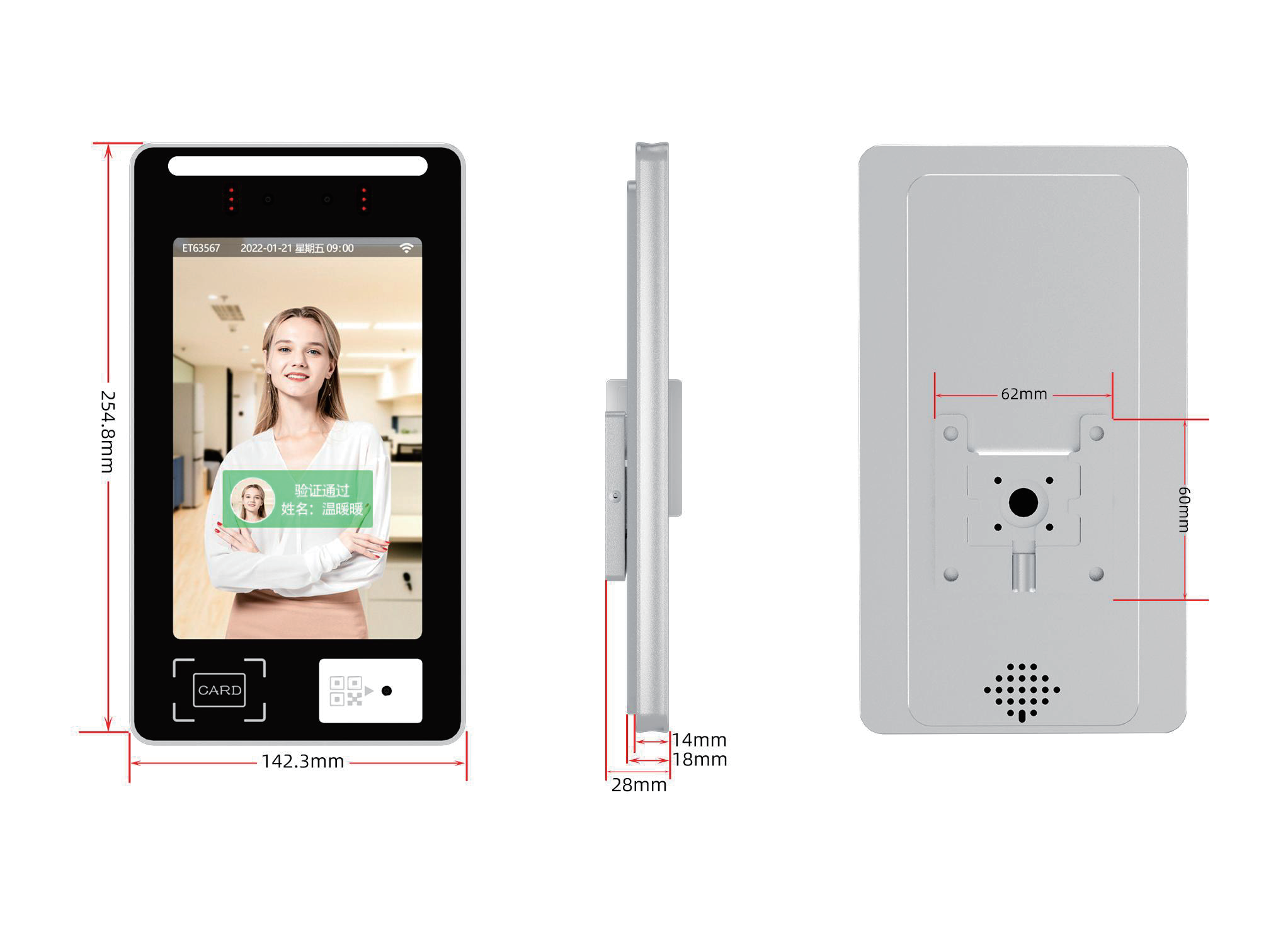

Wall mount — 254.8 × 142.3 × 28 mm

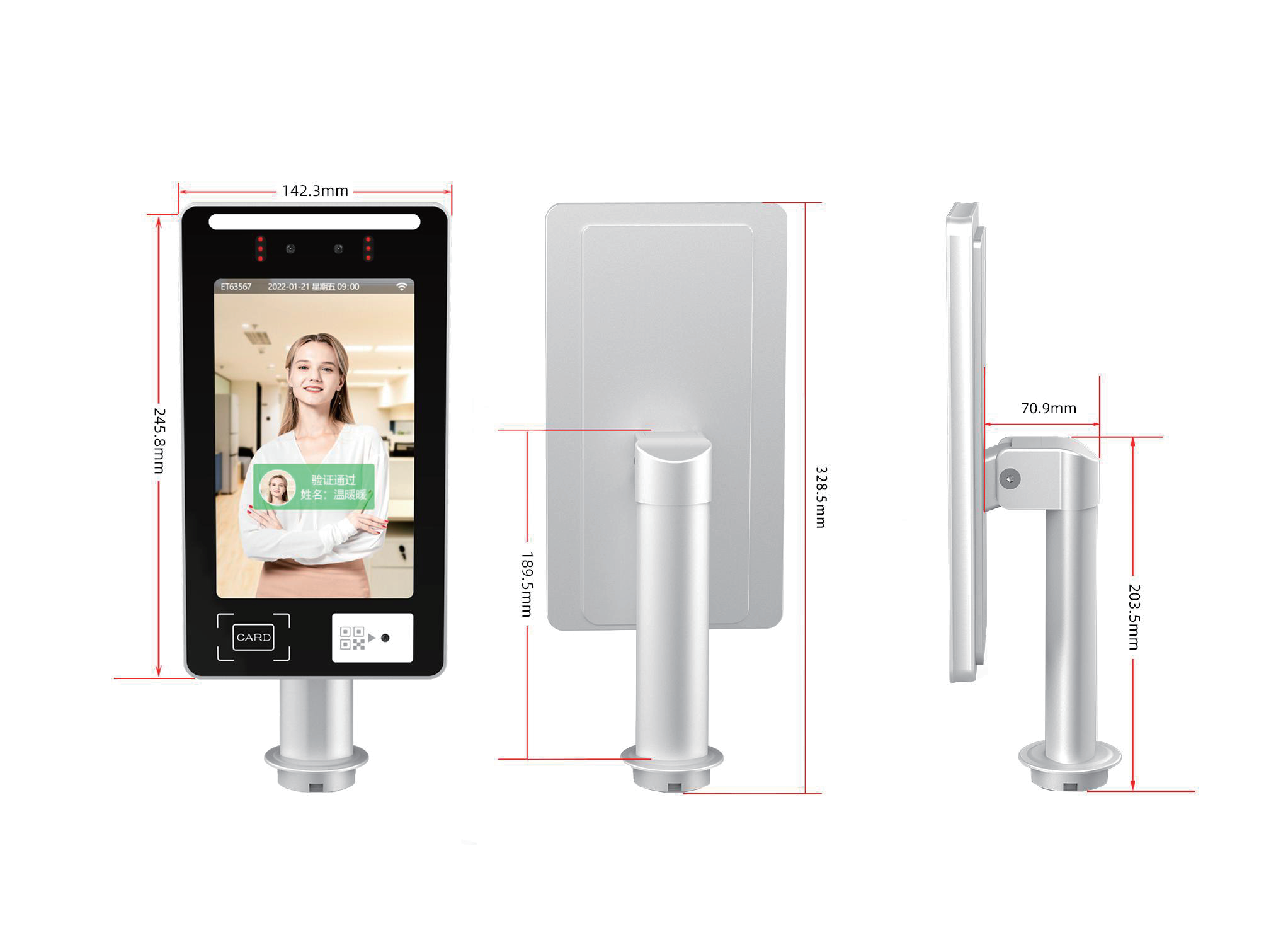

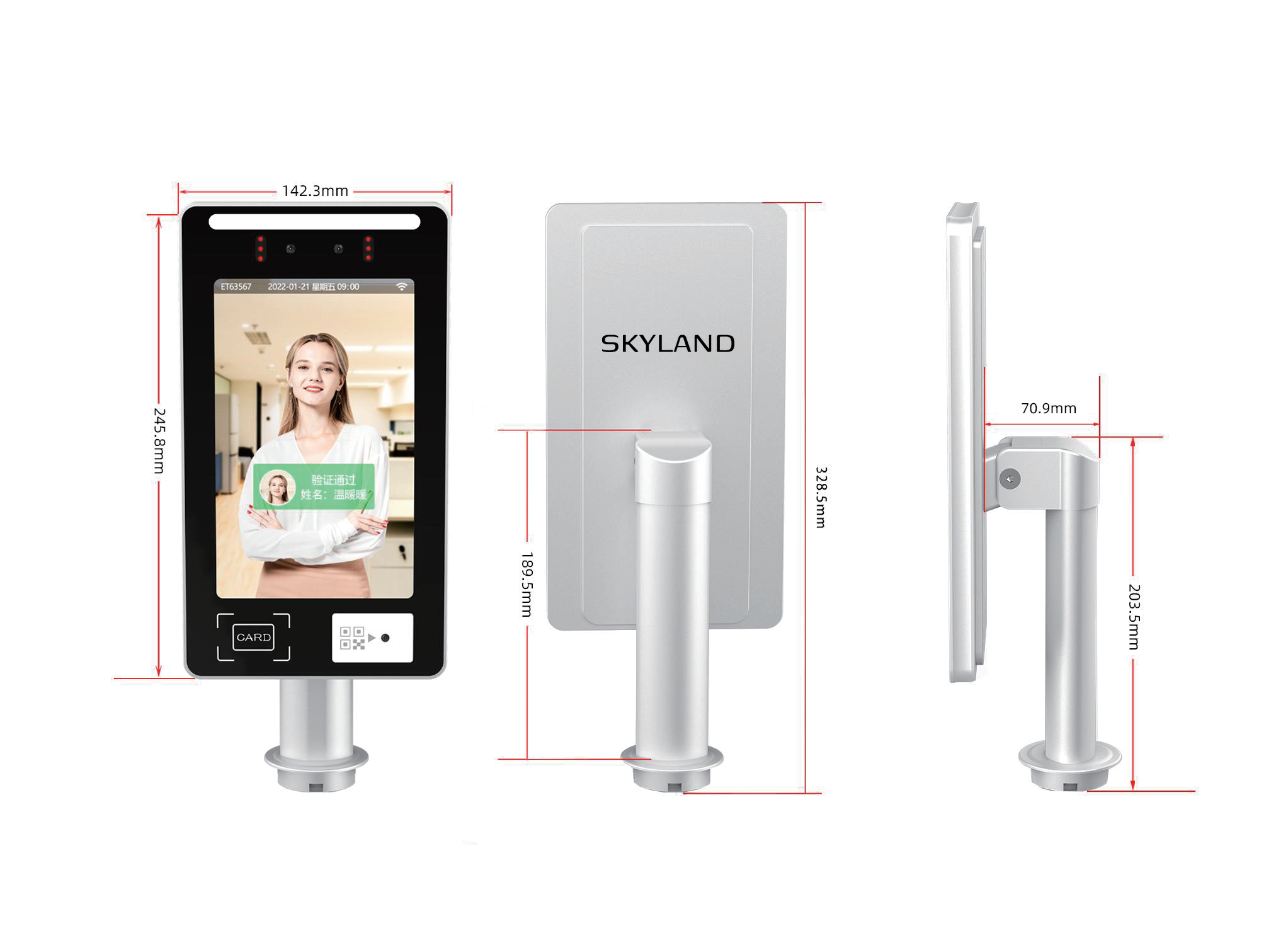

Pedestal / column — overall height 328.5 mm
